Well Control Equipment

Well control equipment is essential for controlling pressure and flow of fluids in the wellbore, and preventing uncontrolled releases. This Equipment includes the blowout preventer (BOP), choke manifold, kill line, and mud-gas separator.

Following is our product reference list, please kindly contact us and let us know your needs.

Ram Assembly

-


BOP ram assembly include ram blocks, front packer and top seal. Our products are produced to be replaceable with OEM products, like Cameron style and like Shaffer style. The bore diameter is from 120mm to 760mm, and pressure range is from 14Mpa to 105Mpa. We provide blind ram (CSO), shear blind ram (SBR), pipe ram and variable bore ram (VBR). According to load-bearing requirements, slip ram can be provided as one type of pipe ram, and also anti-hydrogen sulfide ram can be provided for special working environments.

Contact us

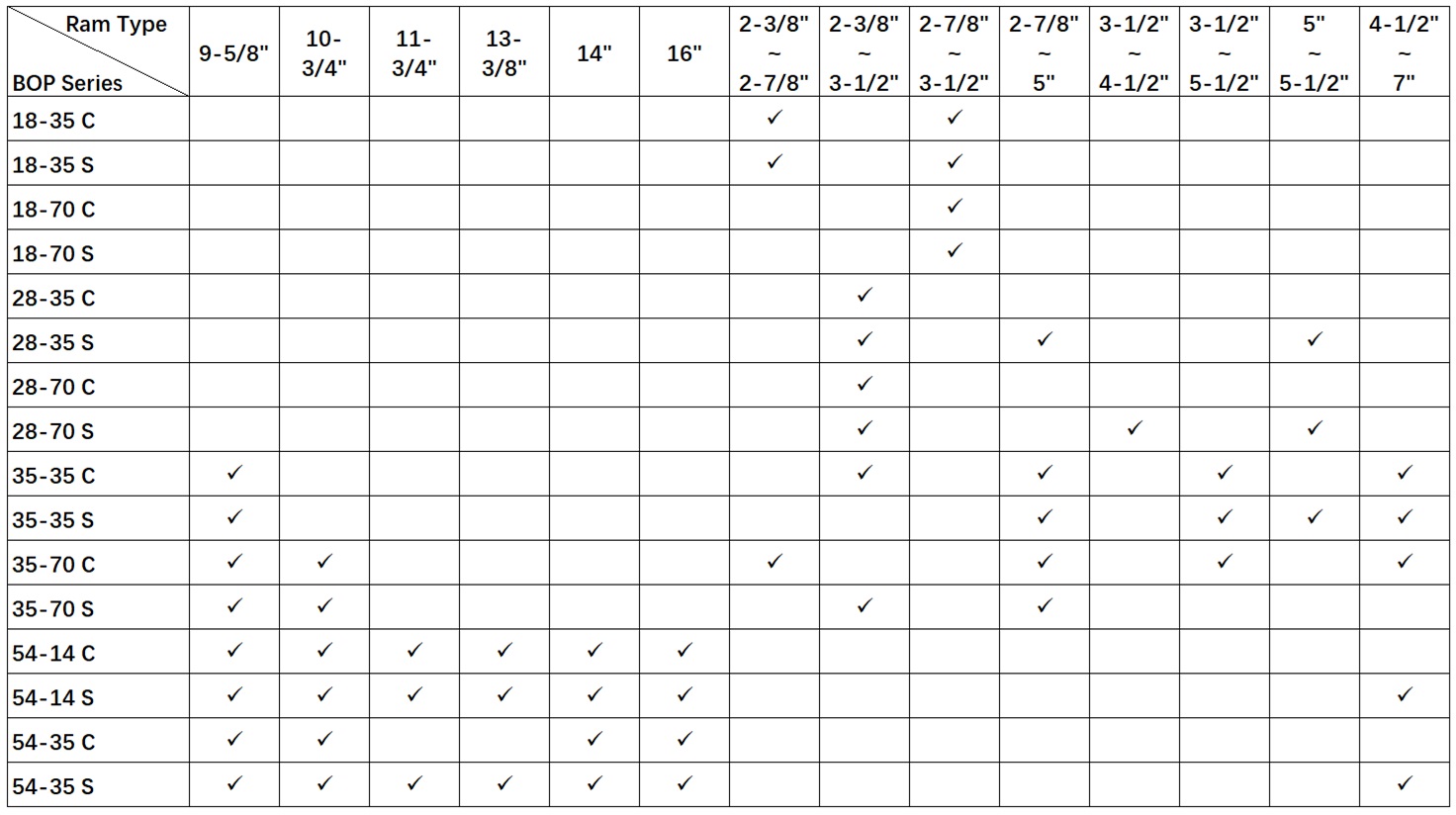

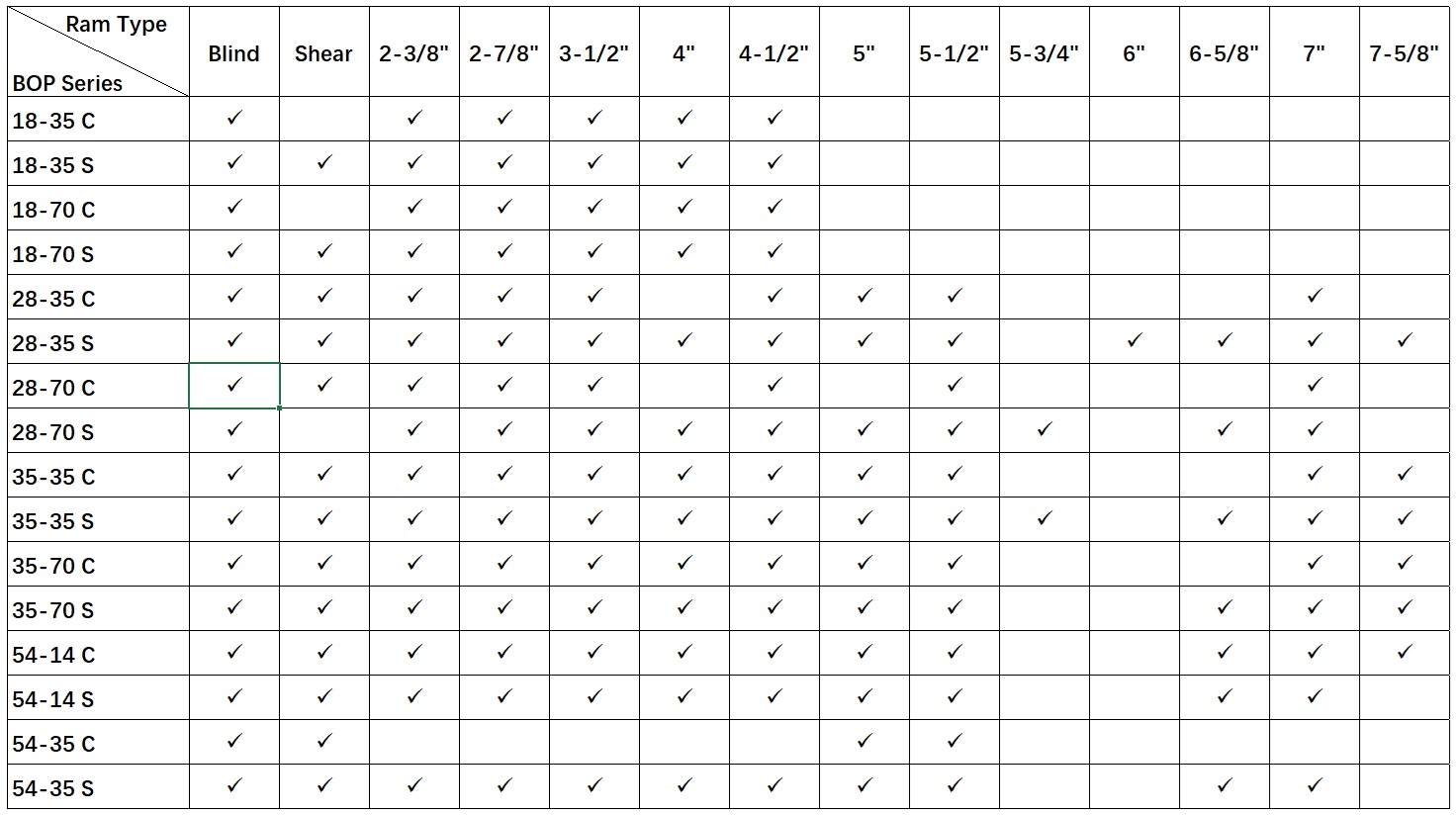

BOP Ram Assembly List



C - like Cameron;
S - like Shaffer
