High Strength Movable Elbow

API Spec 6A

It is the control component of high-pressure fluid in cementing Equipment and fracturing Equipment. It is the pipe fitting that changes the pipeline connection direction and widely used for the acid working environment (except containing CO2 and H2S acid gas).

Working pressure: 35MPa ~ 105MPa
Nominal Bore: 1" ~ 4"
Working temperature: -29° C to 121° C
Product specification level: PSL3
Performance requirement: PR1

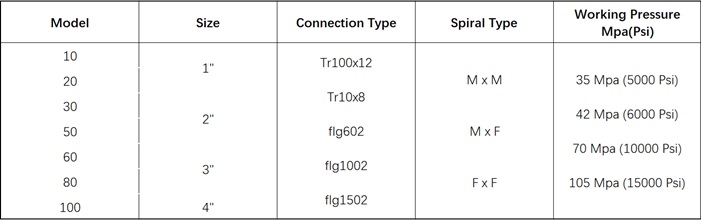

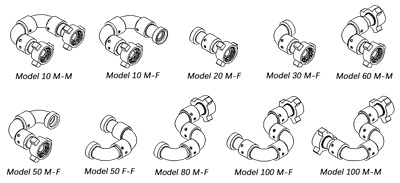

There is model 10, model 20, model 30, model 50, model 60, model 80 and model 100, which can have different combinations of screw types. It can replace SPM company’s similar products.

1. The connection type of movable bend can be provided according to actual requirements.
2. "F" - screwed joint, "M" - ball joint
3. Order example: 4"×105Mpa(15000Psi)-fig1002(F×M)-10
